VHF Antenna Kit with 1/2 Wave No Ground Plane (NGP) Antenna & NMO Mount

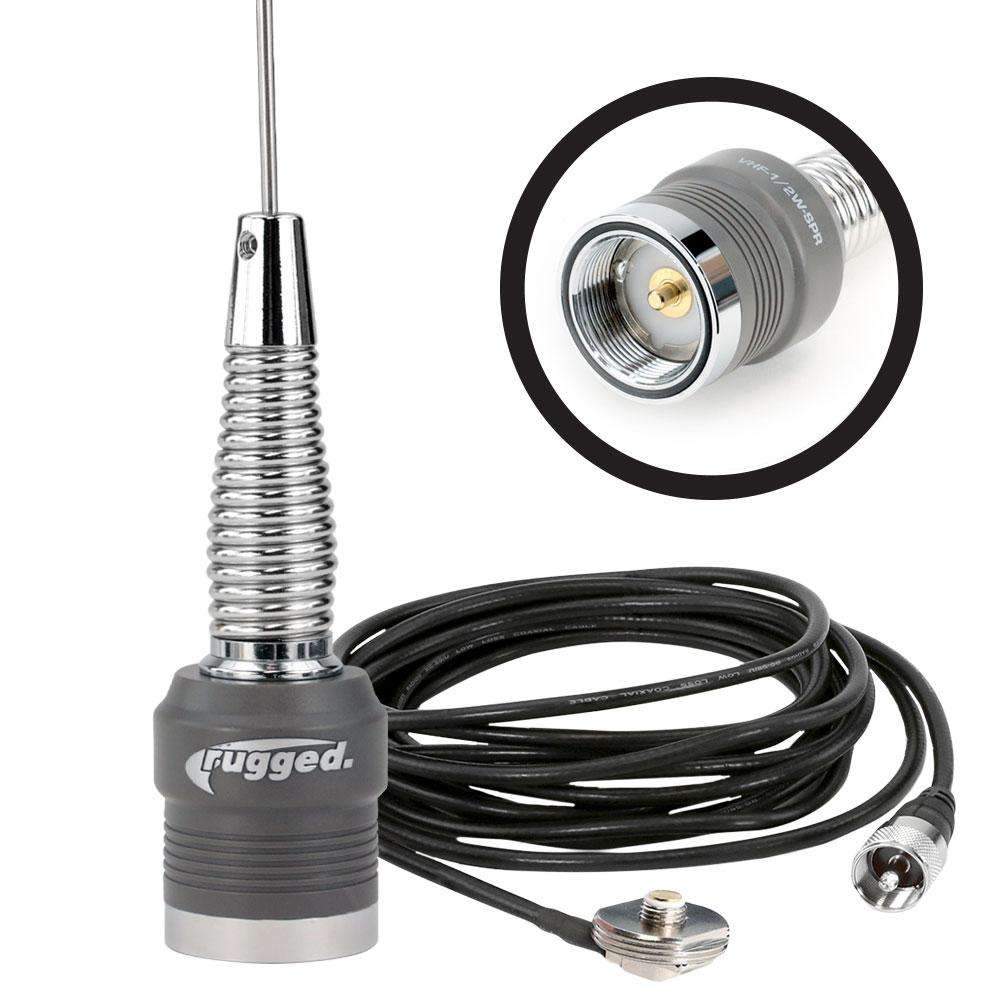

Simple kit combines what you need for antenna replacement in the field. Includes NGP (No Ground Plane) VHF 1/2 Wave antenna and 3/8" NMO style cable mount with 15 feet of cable.

"No Ground Plane" means the antenna does not have to be attached to a metal surface (such as a vehicle roof or larger body panel). Although using a ground plane is always better, this NGP antenna performs great for all uses, drivers, teams, and applications.

Molded high heat ABS mounting base features silver soldered connections, gold plated push pin contacts and O-ring. The VHF antenna is already pre-tuned (cut) for VHF application. Simply order, mount, and ride!

Features:

• VHF Range: 144-174

• Connector Type: None

• Color: Chrome Model(s)

• Gain: 2.4 dB

• VHF Bandwidth: 4 MHz

• Power (watts): 200

• Whip Material: 17-7PH Stainless Steel

• Whip Length @ 154 mHz - 39.8"

• Base Style: Magnetic Mount

• Mount Style: None

• Connector Type: None

NOTE: The center conductor inside the NMO antenna stud is not solid metal and can be damaged if overtightened. As shown in the photo above, when installing the NMO nut, we recommend holding the wrench vertically to reduce torque and overtightening.
