The Switch-Pros - 8 Switch Panel Power System is a premium switch panel power system designed to streamline the control of your vehicle's accessories. With Bluetooth connectivity, RGB backlighting, and a compact relay-free design, it’s the perfect solution for off-road, race, and utility vehicles needing a rugged, programmable, and easy-to-install electrical control system.
Features:

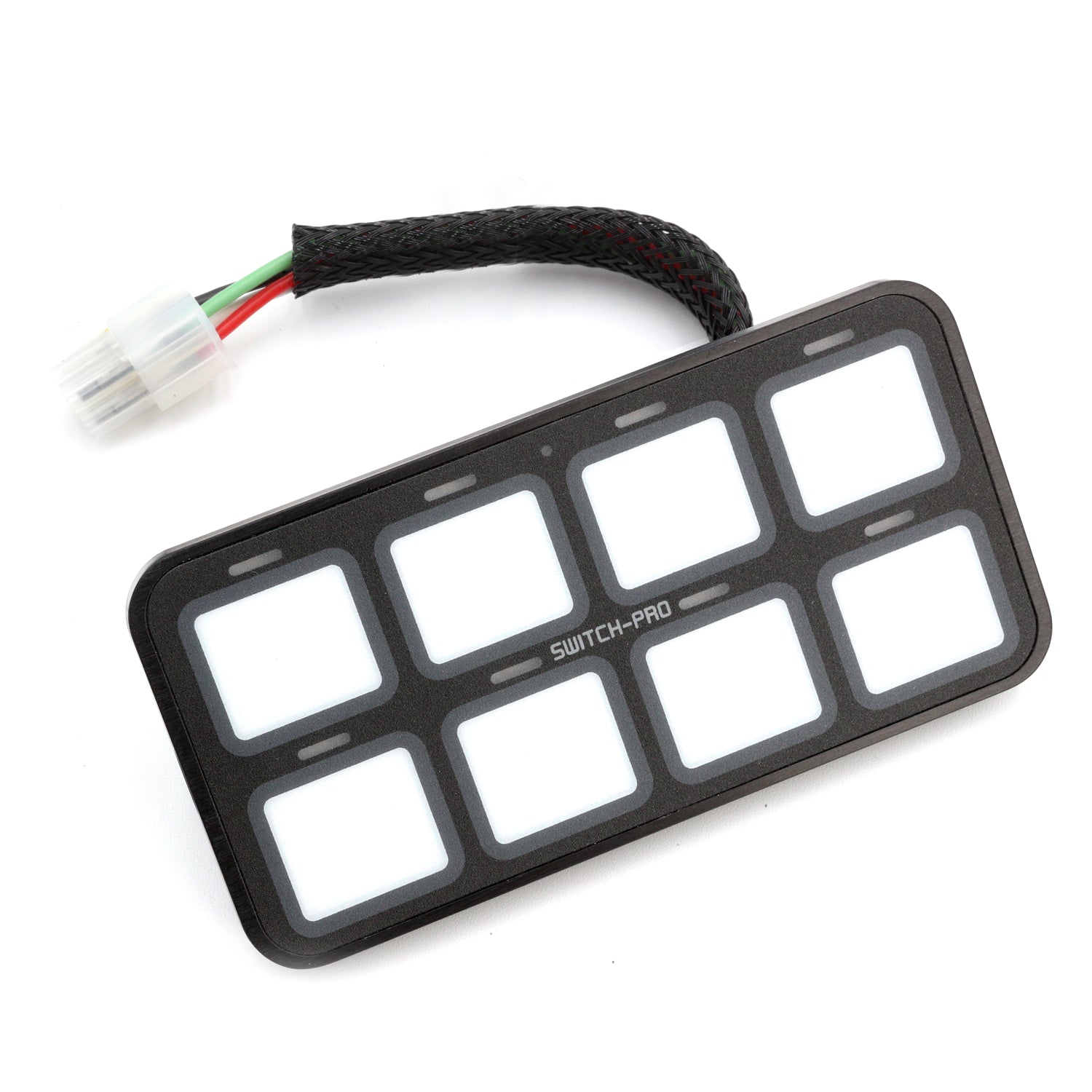

- 8 Button Switch Panel with 8 outputs
- RGB backlighting for customizable illumination
- Built-in Bluetooth module for wireless control via the free Switch-Pros App (iOS & Android)
- Battery voltage readout displayed in the app for real-time monitoring
- Orange LED switch indicators for clear visibility
- LED input status indicators on the power module for easy troubleshooting
- Preset dimming function with memory (adjustable from 100% to 10% brightness)
- Master mode allows control of up to seven switches with a single press
- On/Off or momentary function for versatile accessory control
- Ignition or battery input options for flexible wiring setups
- Flash or strobe mode with user-selectable strobe patterns and one-touch activation
- Automatic power-up when the vehicle starts
- Time delay off to control shutdown timing for accessories
- Low voltage disconnect to prevent battery drain
- Sleep mode for minimal power consumption when not in use
- Two external trigger inputs that can activate up to four outputs each (Active Hi or Active Low)
- Daisy chain capability to link up to three Switch-Pro switch panels to a single power module
- IP67 waterproof rating for durability in extreme conditions
- Compact, relay-free design for simplified installation
- Proudly made in the USA

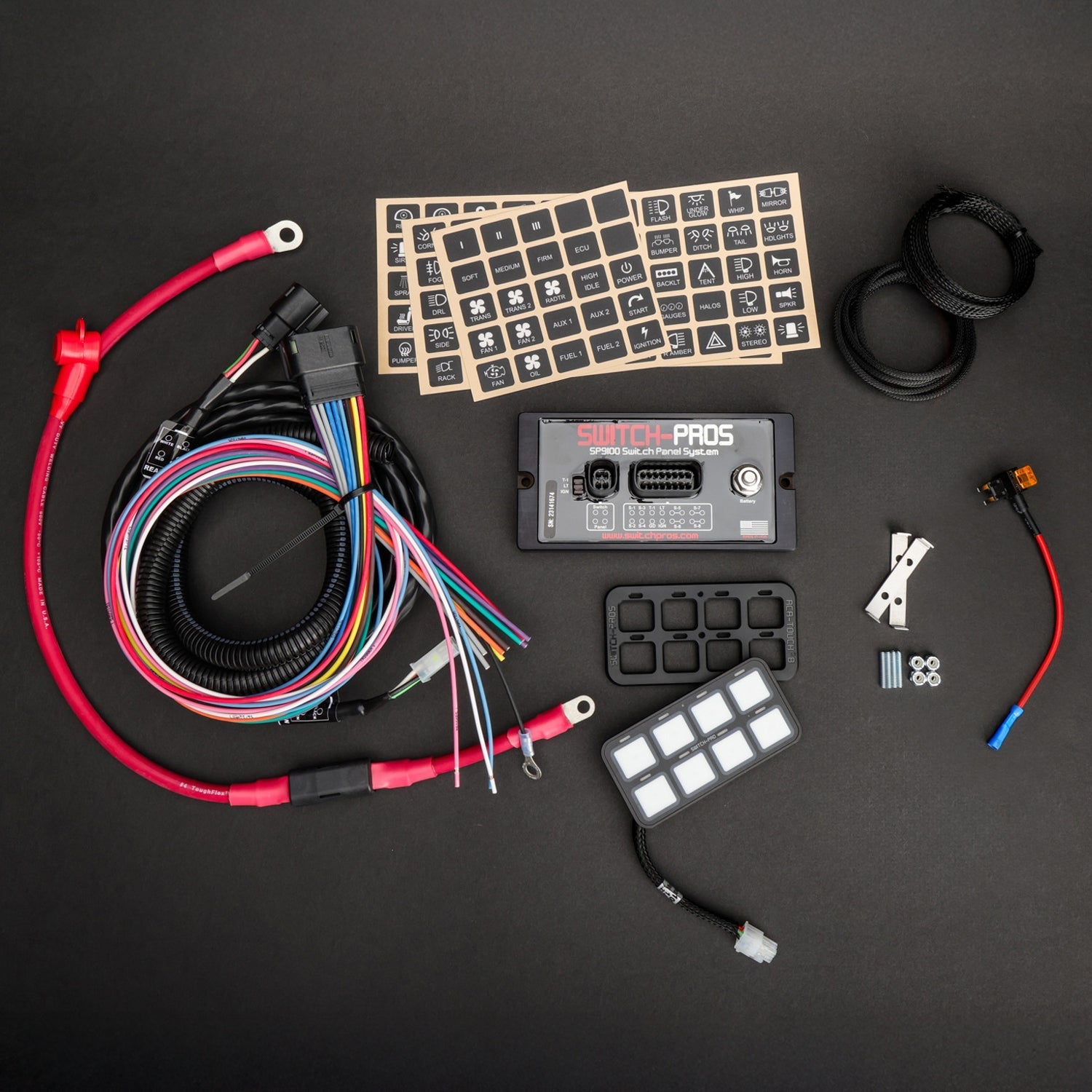

Includes:
- Switch Panel and Power Module for complete accessory control

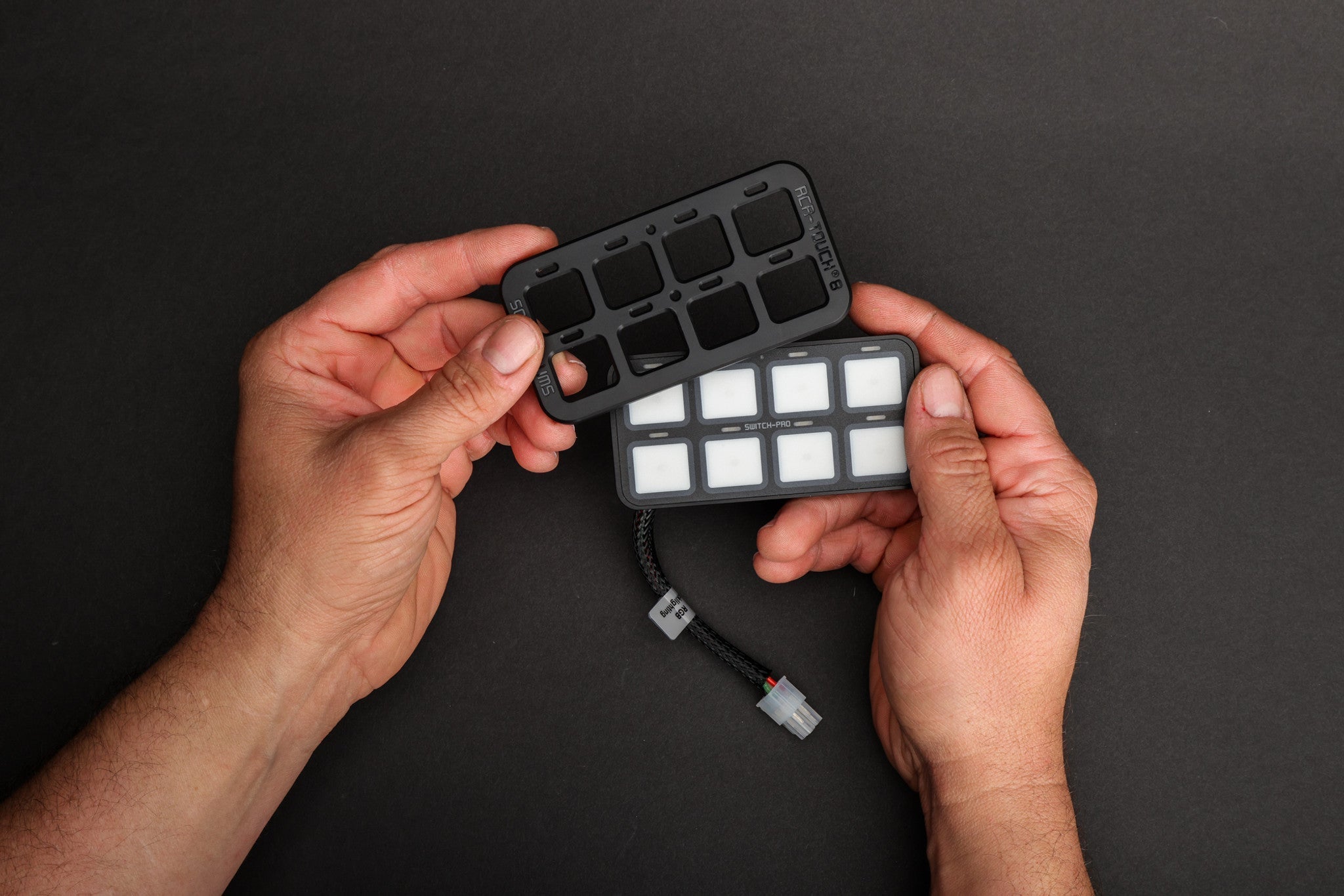

- RCR-Touch® 8 Cover for enhanced switch selection, even with gloves (U.S. Patent No. US D922,969 S)
- 11’ communication cable between the switch panel and power module
- Power cable with 125A inline fuse for secure power distribution

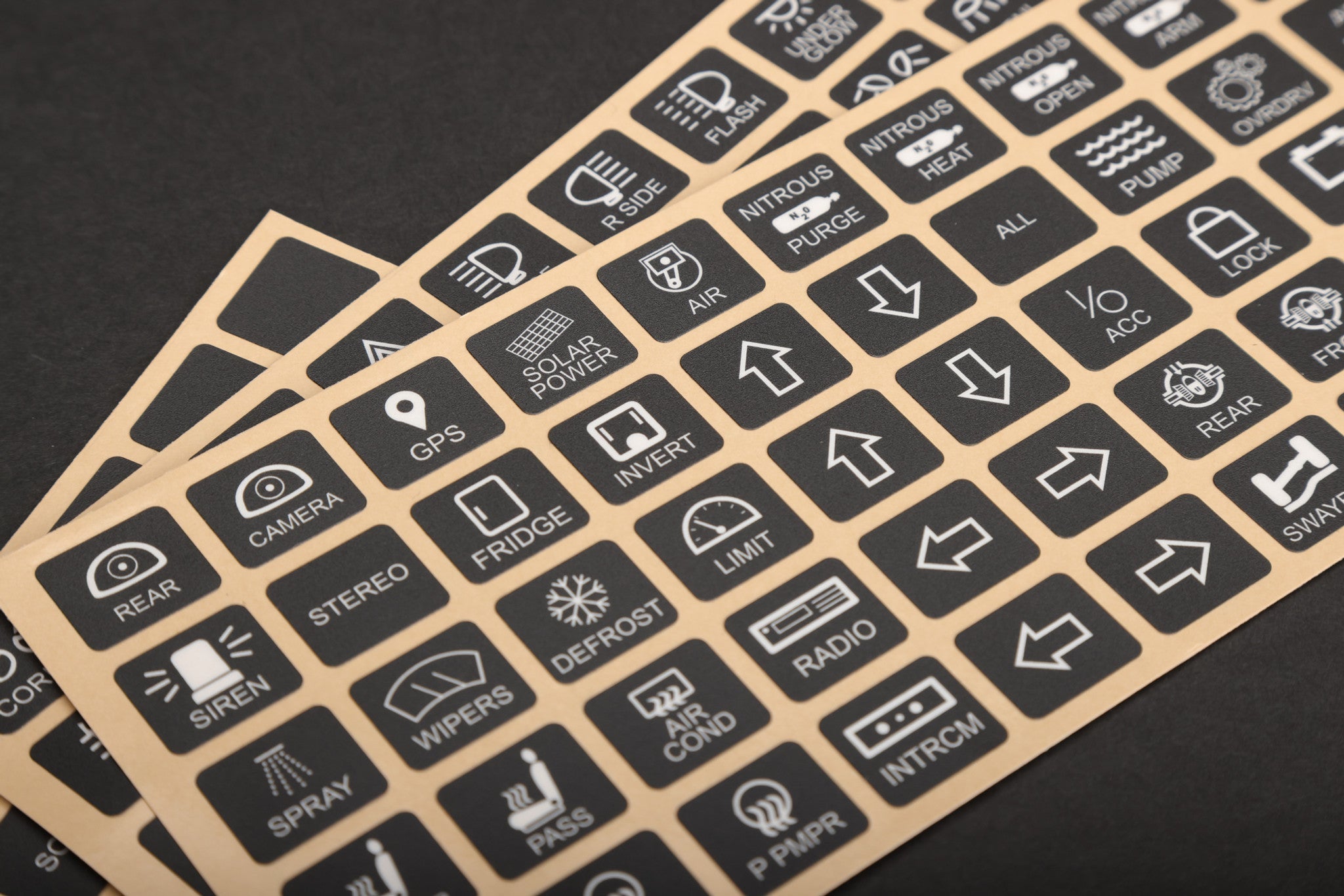

- 125 user-selectable legends (horizontal orientation) for customizable labeling
- Installation brackets and hardware for secure mounting
- 16-pin color-coded output harness for streamlined wiring
- Detailed installation guide for easy setup
Specifications:
- 125A total capacity with 8 configurable outputs
- Output ratings: 4 outputs @ 35A, 4 outputs @ 20A
- Adjustable overcurrent protection for each output
- Switch panel dimensions: 4” L x 2” W x .375” H

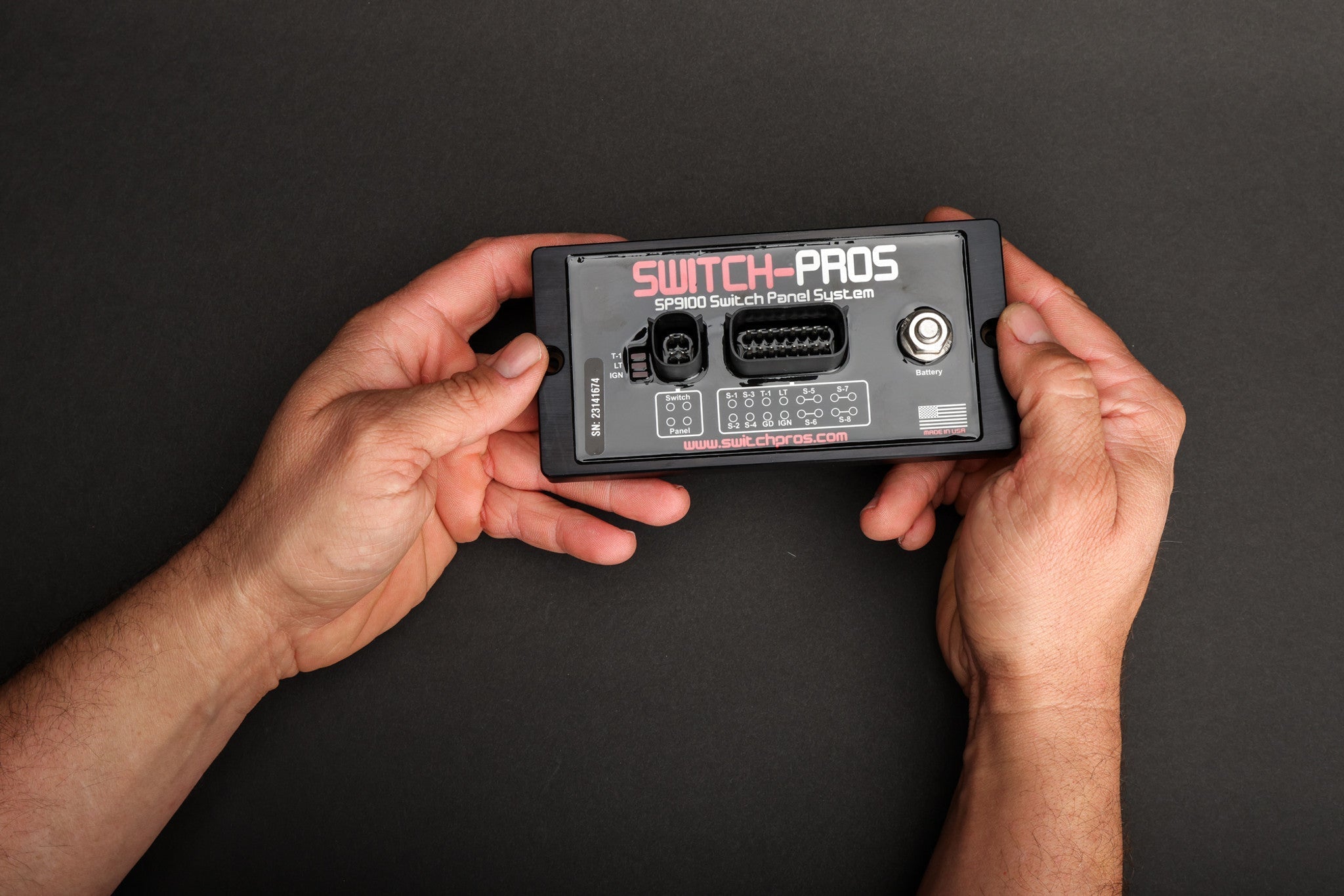

- Power module dimensions: 6” L x 3” W x .5” H (excluding connectors)
- Operating temperature: -40°C to 125°C
The Switch-Pros SP9100 is the go-to choice for off-roaders, racers, and professionals seeking a powerful, user-friendly switch system with advanced features and rugged reliability.
