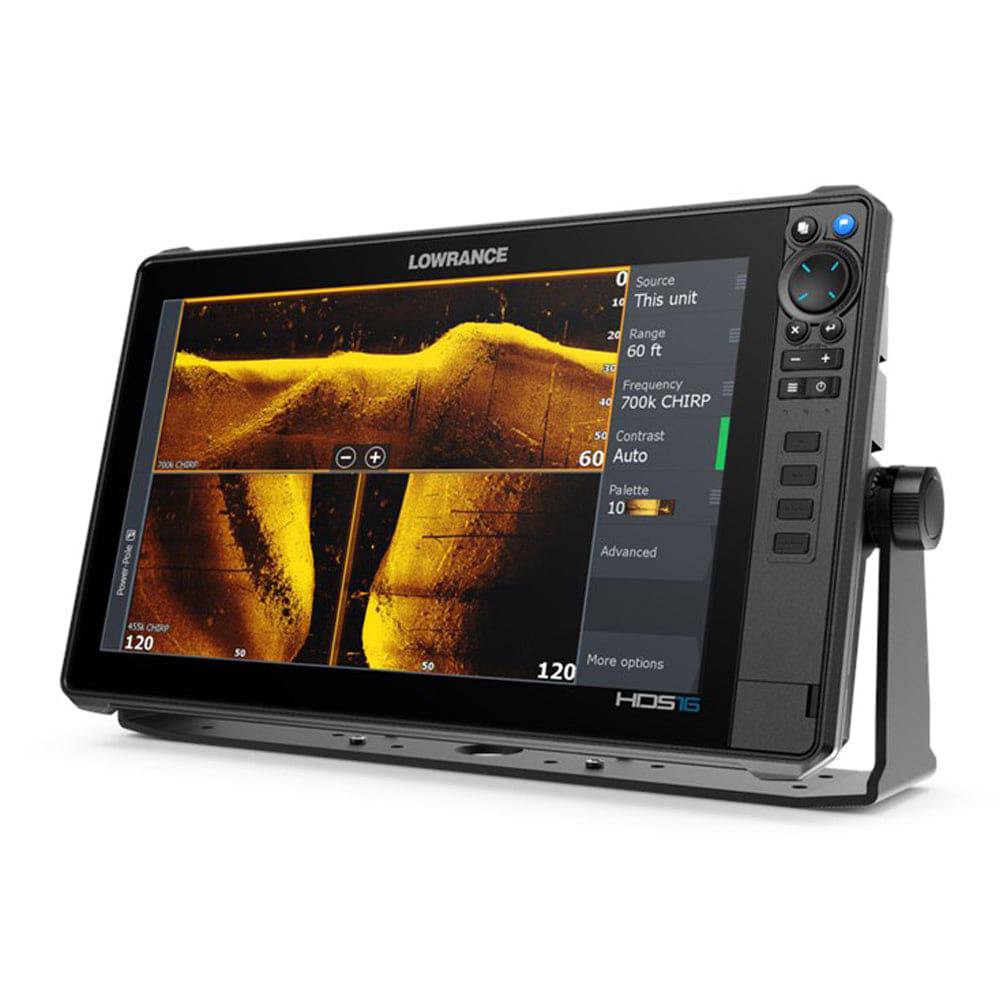

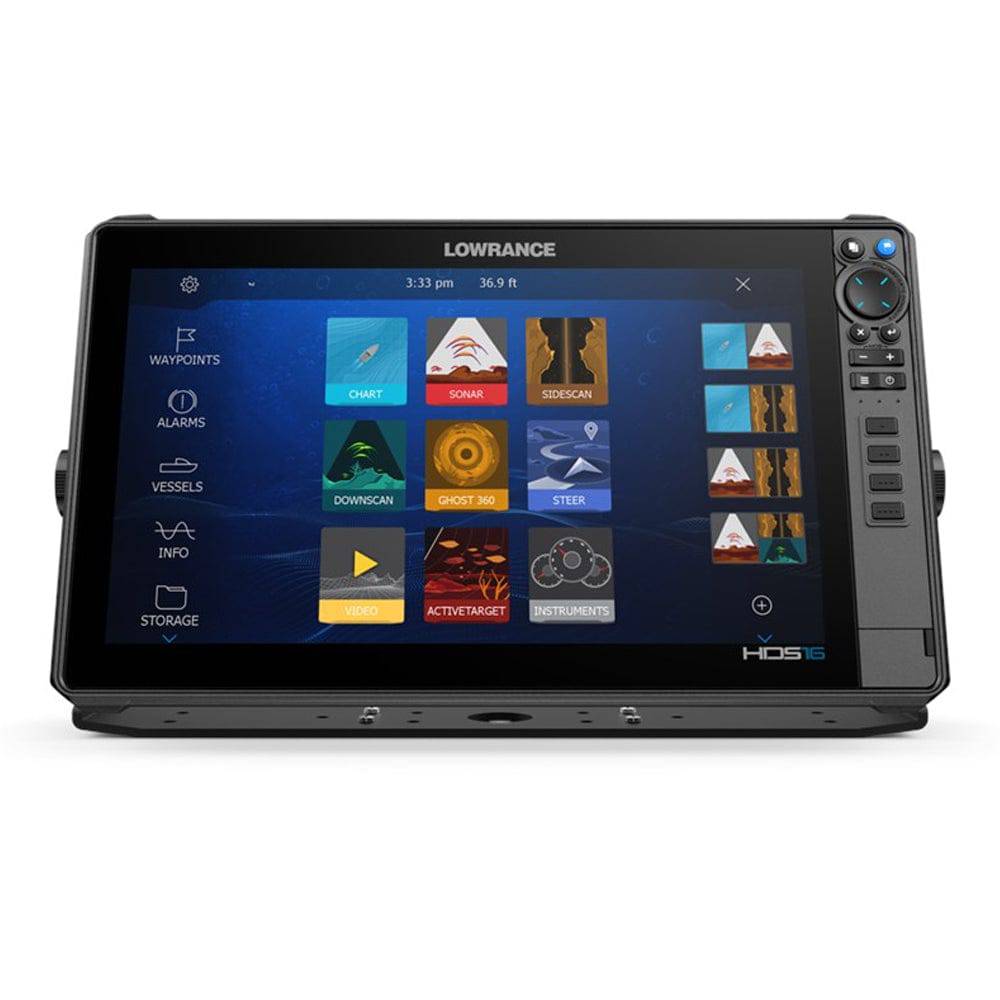

Lowrance HDS Pro 16

• SolarMAX™ HD Touchscreen viewable at extreme angles and through polarized lenses
• Preloaded C-MAP® DISCOVER OnBoard charts with 1-foot contours on 19,000+ US Lakes, 9,400+ Canadian Lakes or worldwide basemap
• Real-time mapping available with C-MAP® Genesis Live.
• Large programmable keys for 10, 12 and 16-inch sizes
• NMEA 2000®, Wireless and Bluetooth®, connectivity – plus smartphone notifications

Specs

Manufacturer SKU: 000-16005-001

• Display

  Backlight Color Pure White LED

  Display Resolution 1920 x 1080 Full HD

  Screen Brightness >1200 Nits

  Viewing Angles 80° top/bottom, 80° left/right








• SD Card Storage 2 micro SD cards up to 32GB
• Internal Storage 8.0 GB Internal
• Video Output: No
• Video Input: Composite video RCA - singlechannel via optional adaptor
• Power Consumption max 4.1A @ 13VDC with Full Backlight

• Environment

  Humidity IEC 60945 Damp Heat 150°F (66°C) at 95% Relative Humidity (48 hrs)

  Operating Temperature Range 5°F to 131°F (-15°C to 55°C )

  Shock Vibration 100,000 cycles of 20 G

  Storage Temperature Range 4°F to 140°F (-20°C to 60°C )

  Waterproofrating IPX7 with card door closed






• Physical

  Compass Safe 65 cm (2.1 ft)

  Dimensions W x H x D16.95" (430.5 mm) x 10.20" (259.2 mm) x 3.46 (87.8 mm)

  Mounting Type Gimbal Bracket Front Dash Flush Mount Rear Dash Flush Mount

  Weight 7.94 lb (3.60 kg)
