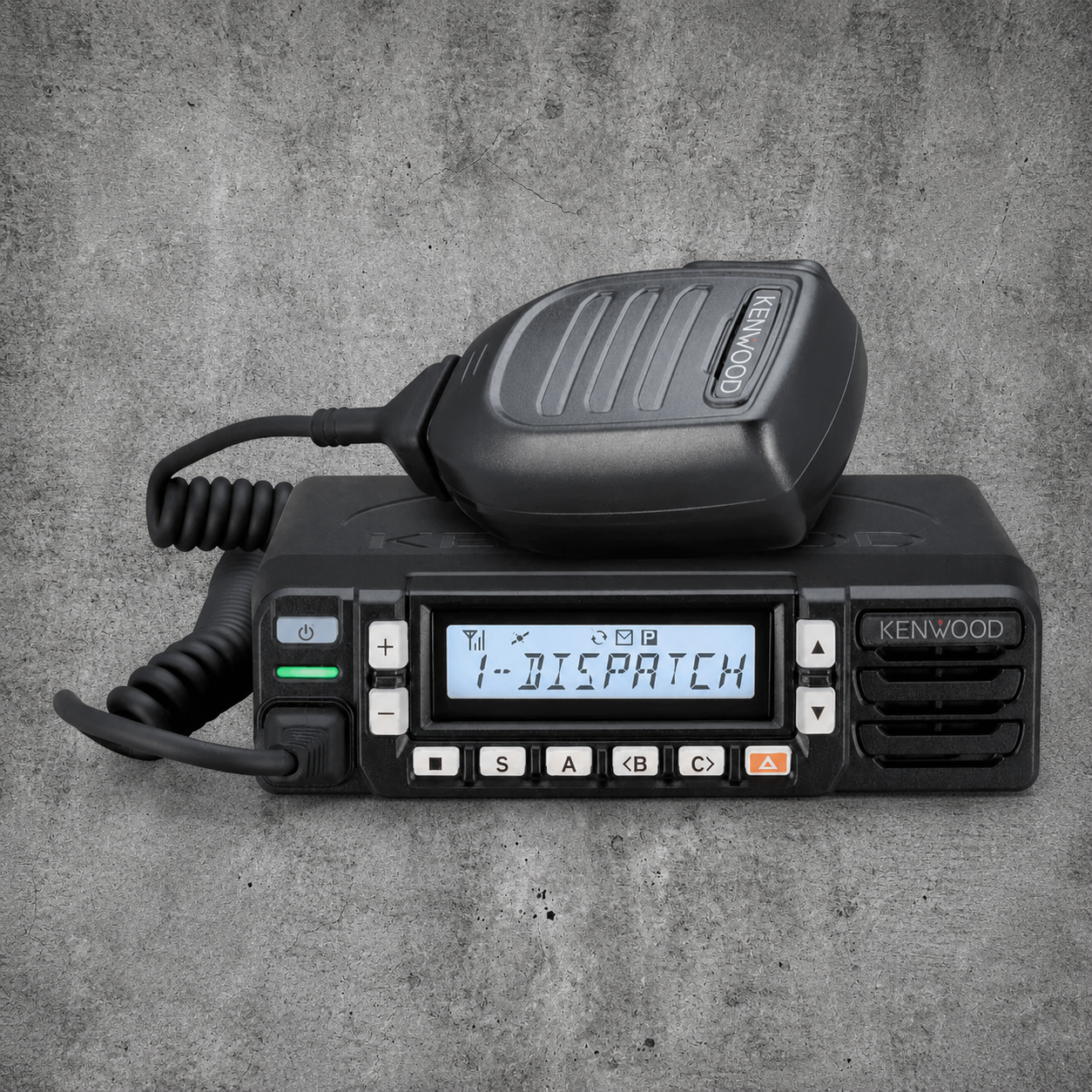

Kenwood NX-1800 UHF Race Radio

Reason for Clearance: Display Unit. Minor Scratches and Signs of Wear.

*This radio has been race modified to be used with an intercom system or single seat harness*

This Kenwood NX-1800 UHF radio boasts a full spectrum of features that most other radios cannot compete with. This radio is water resistant and can be used in race applications.

The NX-1800 requires less power to transmit at 45 watts. This means less battery draw, and the capability to transmit at full strength when your battery isn't charging. The NX-1800 makes the ultimate race radio!

Race version includes the intercom interface cable.

The NX-1800 is the same size and utilizes the same brackets as the TK-8360 - making it an easy upgrade. The most notable differences are 132 more channels, a metal cover on the circuit board for additional shielding, lower TX amperage, better frequency stability, a higher wattage audio output for a louder external speaker and less audio distortion.

Specifications

• 45 Watts @ 13.8v 400-470MHz
• 260 Channels
• Easy Read LCD White Backlit Display
• IP54 Rated with mic jack cover in place.
• 13A draw upon transmit (15amp fuse recommended)
• FCC Part 90 Hand Held Pre-Programmed with PCI's licensed channels. For more info about our license sharing Click here.

Downloads

Button Diagram

User Manual
