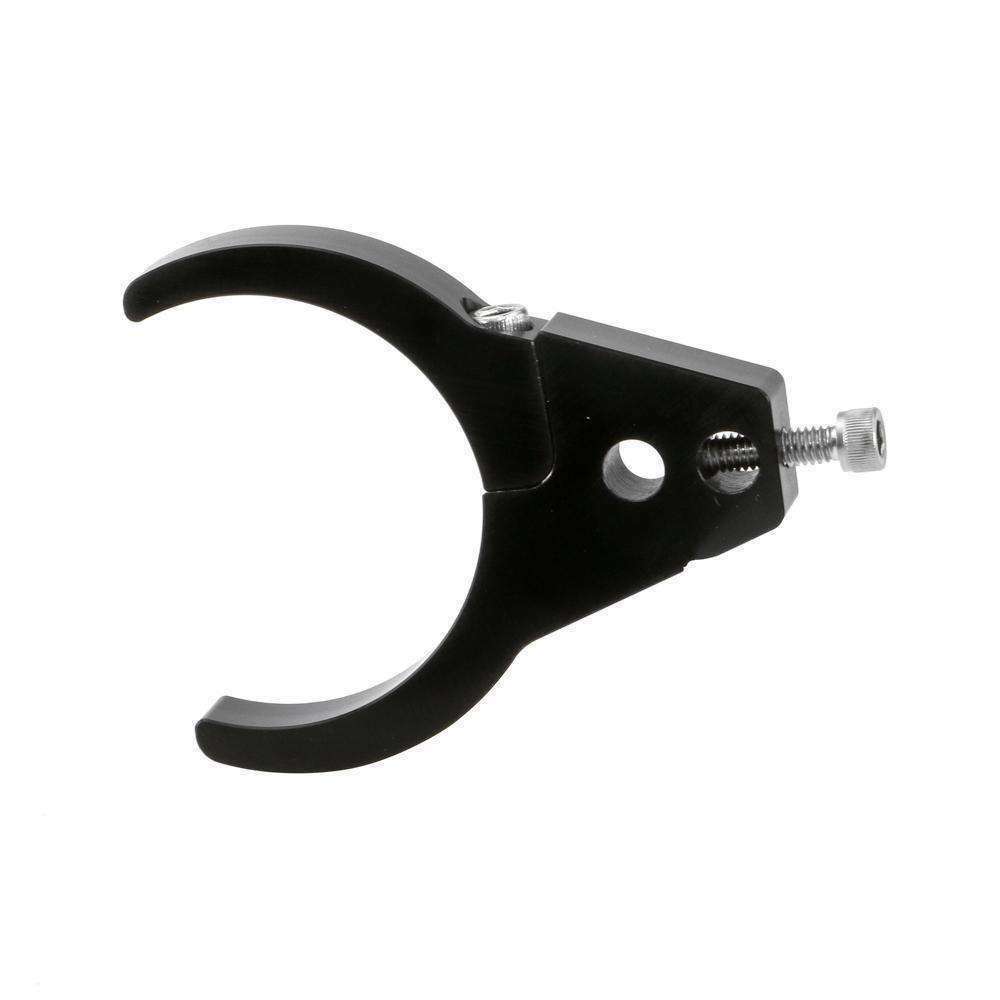

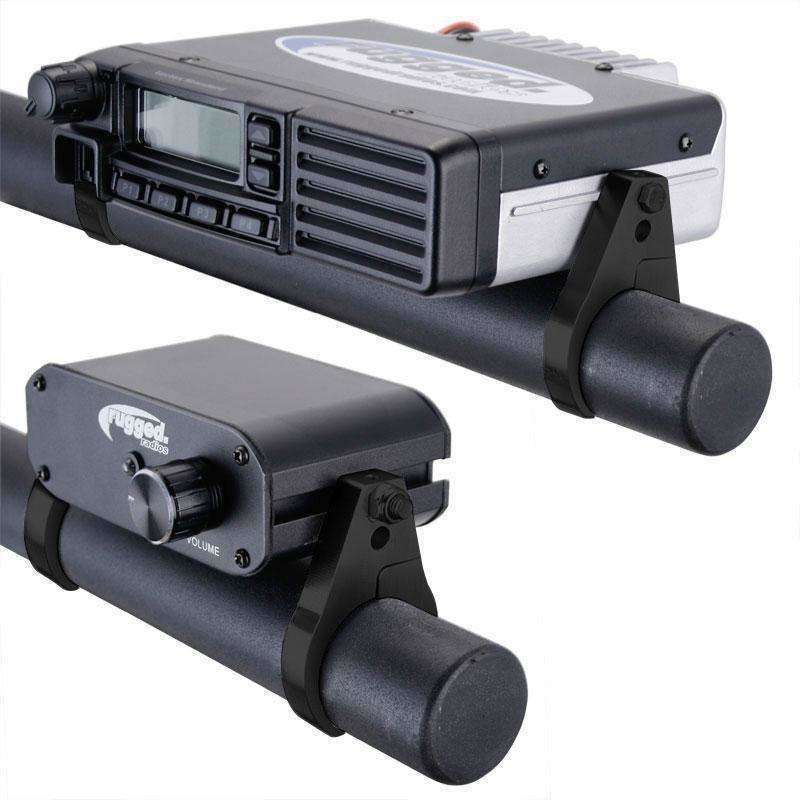

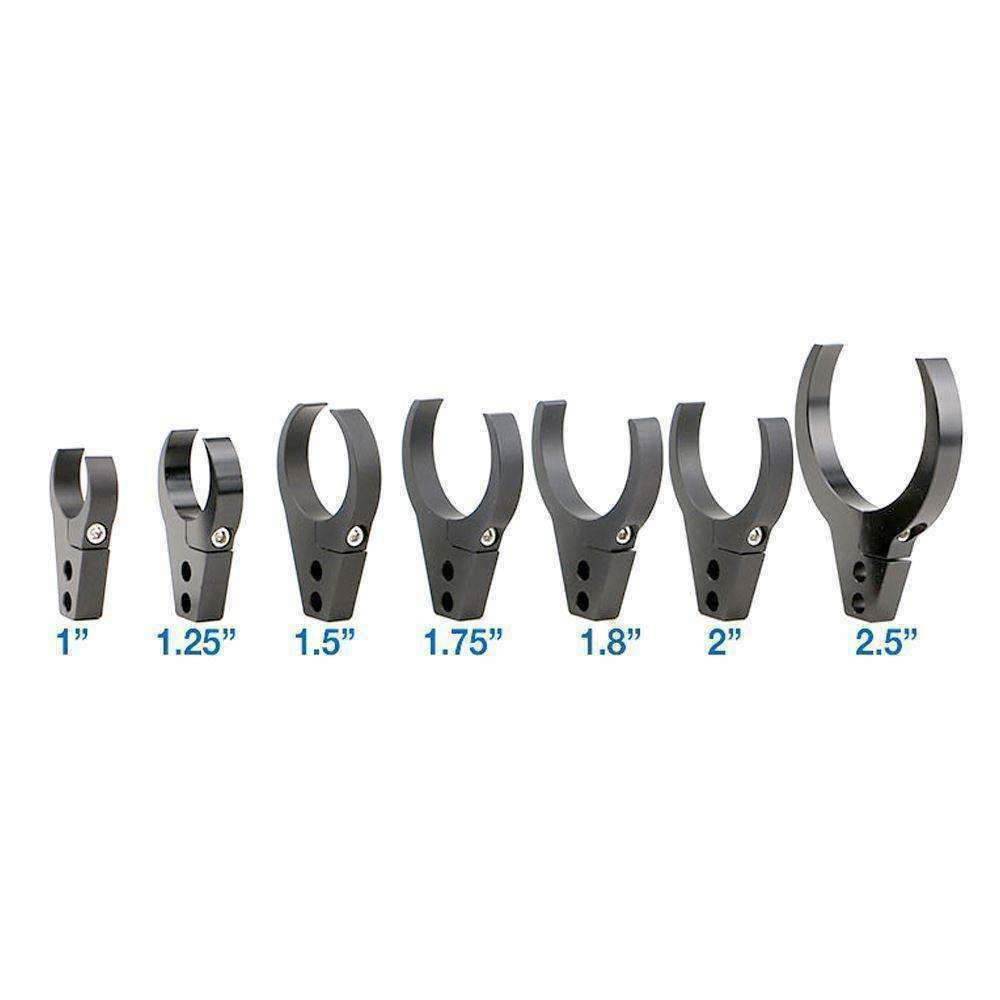

Billet machined bar mounts make it easy to mount intercoms, headset hangers, and other accessories to 1", 1.25", 1.5", 1.75" 1.8", 2" and 2.5" tubing, adapting to virtually all UTV's, sand rails, and custom builds!
Features:
- Half-Clamp Design
- Stainless Steel Hardware
- CNC machined alloy
- Black anodized finish
- Sold individually, not in sets.

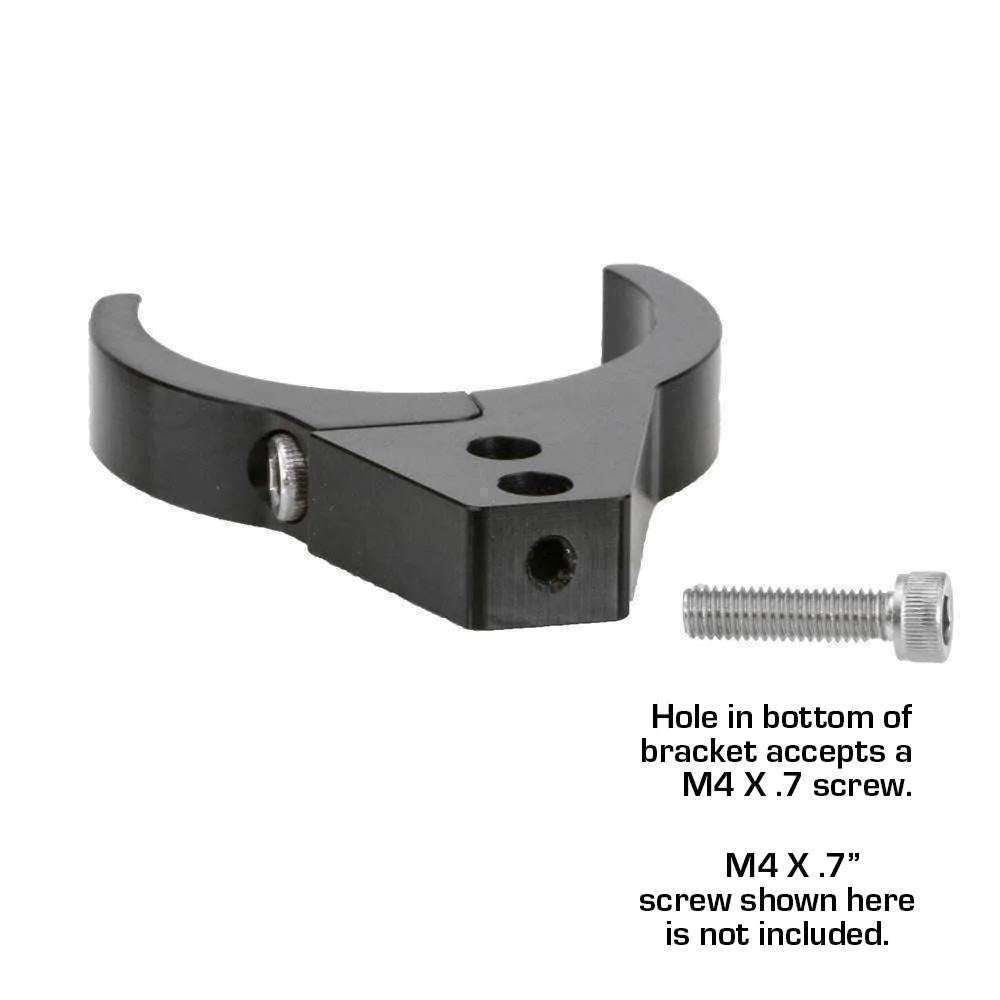

A hole in the bottom of mount accepts an M4 X .7 screw. The screw is not included.
Note: Two Bar Mounts required to mount with intercom!
Intercom and Radio not included
| Arctic Cat | Perimeter | Crossbar | Seat Back, Front | Seat Back, Rear |
| Wildcat | 1.75" | 1.75" |
|
|
| |
|
|
|
|
| Can-Am | Perimeter | Crossbar | Seat Back, Front | Seat Back, Rear |
| Commander/Maverick | n/a | 2.00" | 1.00" | 1.80" |
Maverick R
| 1.80" | 2.00" | n/a | n/a |
| MAVR Max | 1.80" | 1.80" | 1.80" | n/a |
| X3 | 1.80" | 1.80" | 2.50" | n/a |
| X3 Max | 1.80" | 1.80" | 1.80" | 2.50" |
| Defender | n/a | 2.00" | 1.00" | n/a |
| |
|
|
|
|
| Honda | Perimeter | Crossbar | Seat Back, Front | Seat Back, Rear |
| Big Red | 1.625" | 1.625" | | n/a |
| Talon | 2.00" | 1.65" | | n/a |
| Talon 4 Seat | 2.00" | 2.00" | 1.34" | 1.34" |
| Pioneer | 1.75" | 1.75" | 1.25" | n/a |
| |
|
|
|
|
| Kawasaki | Perimeter | Crossbar | Seat Back, Front | Seat Back, Rear |
| Teryx | 1.75" | 1.75" | | |
| Teryx 4 | 1.75" | 1.75" | 1.25" | |
| Teryx 4 KRX/KRX4 | 1.75" | 1.50" | 1.25" | |
Teryx H2
(rear downtube 1.25") | 2.00" | 2.00" | 1.25" | n/a |
| Ridge | n/a | n/a | 1.25" | n/a |
| Mule | 1.75" | 1.75" | 1.75" | n/a |
| |
|
|
|
|
| Polaris | Perimeter | Crossbar | Seat Back, Front | Seat Back, Rear |
| ProR, Turbo R, Pro XP (2015 and newer) | 2.00" | 1.75" | 1.25" | n/a |
| Ranger, RZR, RZR S, XP | 1.75" | 1.75" | 1.50" | 1.50" |
| Turbo S | 1.75" | 1.75" | 1.75" | 1.75" |
| Xpedition | n/a | n/a | 1.25" | n/a |
| Ranger 1500 | n/a | n/a | 1.25" | n/a |
| RZR 200 | 1.50" | 1.50" | 1.50" | 1.50" |
| |
|
|
|
|
| Redline | Perimeter | Crossbar | Seat Back, Front | Seat Back, Rear |
| Revolt | 1.25" | 1.25" | | |
| Riot | 1.50" | 1.25" | | |
| | | | | |
| Segway | Perimeter | Crossbar | Seat Back, Front | Seat Back, Rear |
| Villain | | | | |
| Super Villan | 2.00" | 2.00" | | |
| | | | | |
| Speed | Perimeter | Crossbar | Seat Back, Front | Seat Back, Rear |
| Baja Bandit, El Diablo, El Jefe | 1.75" | 1.75" | 1.50" | n/a |
| | | | | |
| Yamaha | Perimeter | Crossbar | Seat Back, Front | Seat Back, Rear |
| Rhino | 1.75" | 1.50" | | |
| YXZ | 1.75" | 1.50" | | |
| Wolverine RMAX | 2.00" | 1.50" | 1.50" | 1.50" |
