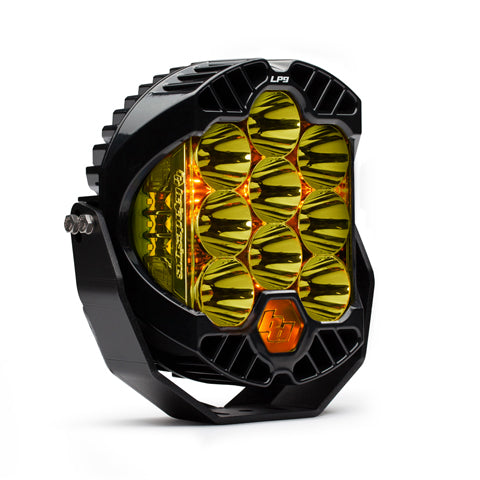

Baja Designs LP9 Racer Edition amber off-road light with a sleek black housing and multiple bright amber lenses.
Click to zoom in
  • Guaranteed Fitment

    We ensure proper fitment for all motorsports and powersports parts

  • Expert Support

    Get guidance from our knowledgeable team who truly understand your needs

  •  Installation Assistance

    We partner with leading shops for professional installations.

  • Wordwide Shipping

    We ship globally to keep you equipped, wherever you race.

Baja Designs LP9, Racer Edition, Amber

Baja Designs
33-0011
Many in stock
LED Pod Lights
$679.95
$679.95

Baja Designs LP9, Racer Edition, Amber

A design that was inspired by Baja Designs’ legendary 8" La Paz HID; The LP9 features modern styling and performance, with some of the most advanced LED technologies available today.

The LP9 utilizes 9 forward projecting LEDS to produce 11,025 Lumens at 105 watts, and 6 LEDs for Integrated Peripheral Technology (IPT) which produce 1,140 lumens at 10.5 watts per side. The IPT provides an incredible 200° spread of usable light.

The housing was designed to provide exceptional heat dispersion by using Direct Ducted Cooling, which allows air to travel from the front of the housing to the rear. With a day-time running light, low, and high power mode, the LP9 will fulfill all your lighting needs.

Available in a standard model that is perfect for a wide range of off-road use, as well as a Racer Edition configuration that is designed for the demands of high speed driving. The Racer Edition has similar power draw, but produces a much tighter pattern, providing higher visibility at greater distances. Both models feature uService technology, which allows customers to change the lens pattern and color depending on driving conditions, or simply when they want to refresh the lens.

The Details

Baja Designs Features:
Satisfactions Guarantee –
30 Day Money Back Guarantee

Limited Lifetime Warranty – Complete Purchase Protection
uService® – Replaceable Lenses And Optics
ClearView® – All The Light, Right Where You Need It.
MoistureBlock™ – Waterproof, Rain Proof, Submersible
CopperDrive® – Only LED Driven At 100%
5000K Daylight – Less Driver Fatigue, Natural Color

Specifications:
Forward Projecting Lumens: 11,025 Utilizing 9 LEDs
Forward Projecting Wattage/Amps:  105W / 7.6AIPT Lumens: 2,280 Utilizing 6 LEDs
IPT Wattage/Amps: 21W / 1.52A
Dimensions: 8" Diameter/ 3.25" Depth
Weight: 6.5lbsMating Connector: DT06-4S Deutsch
LED Life Expectancy: 49,930 Hours
Front Lens:  Hardcoated Polycarbonate
Housing:  Hard Anodized Aluminum
Bezel: Aluminum
Hardware & Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof up to 9ft & Pressure Washable)

IK10 Compliant (Mechanical Impact Testing)
